Project

Slipping away in Birkenhead

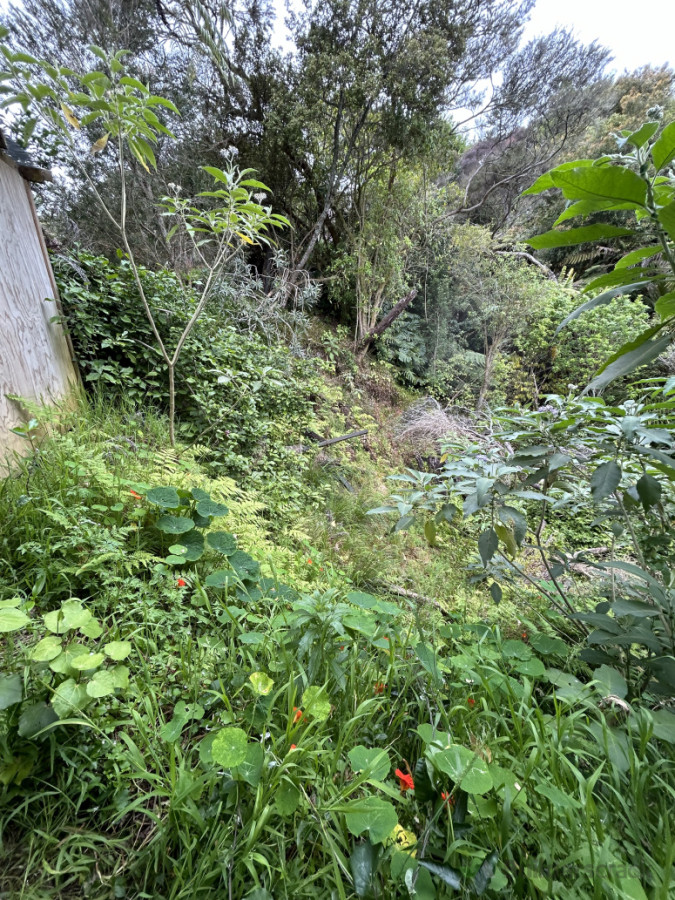

Land slipped ❌

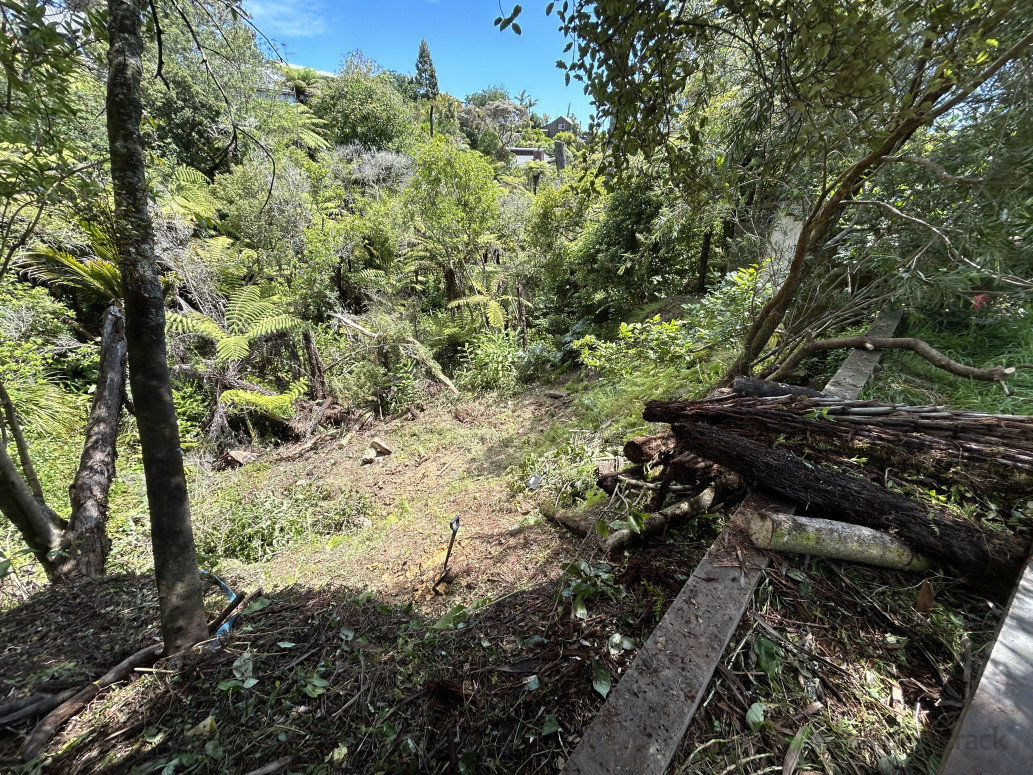

Removal of Vegetation & Debris

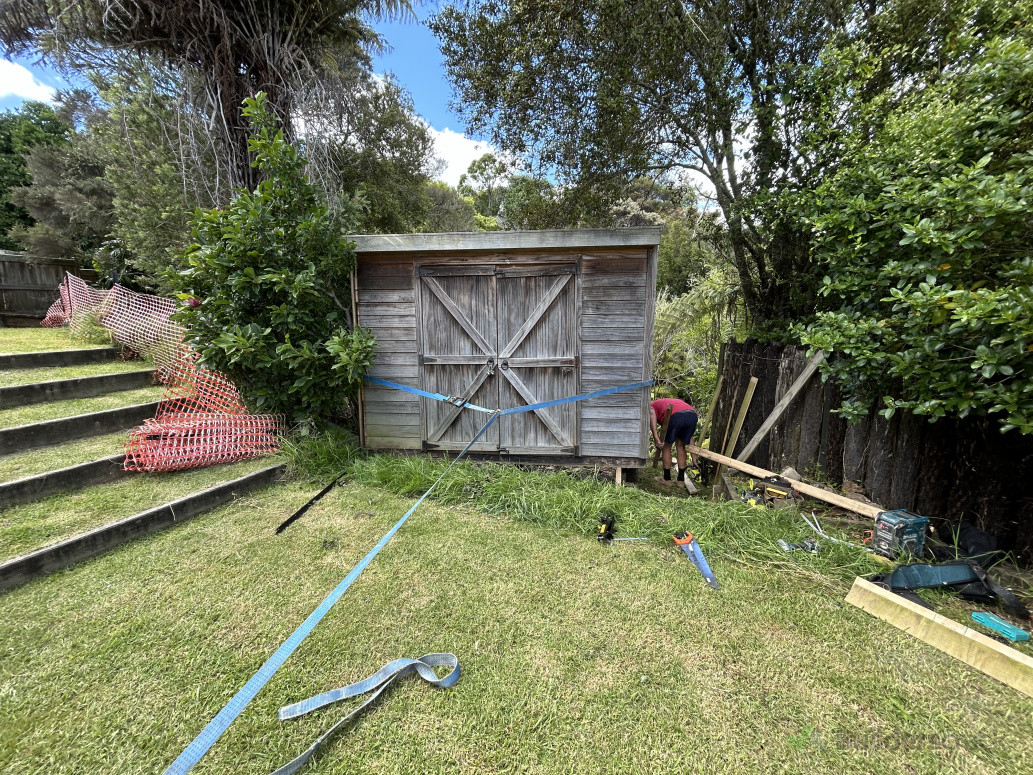

Save the shed!

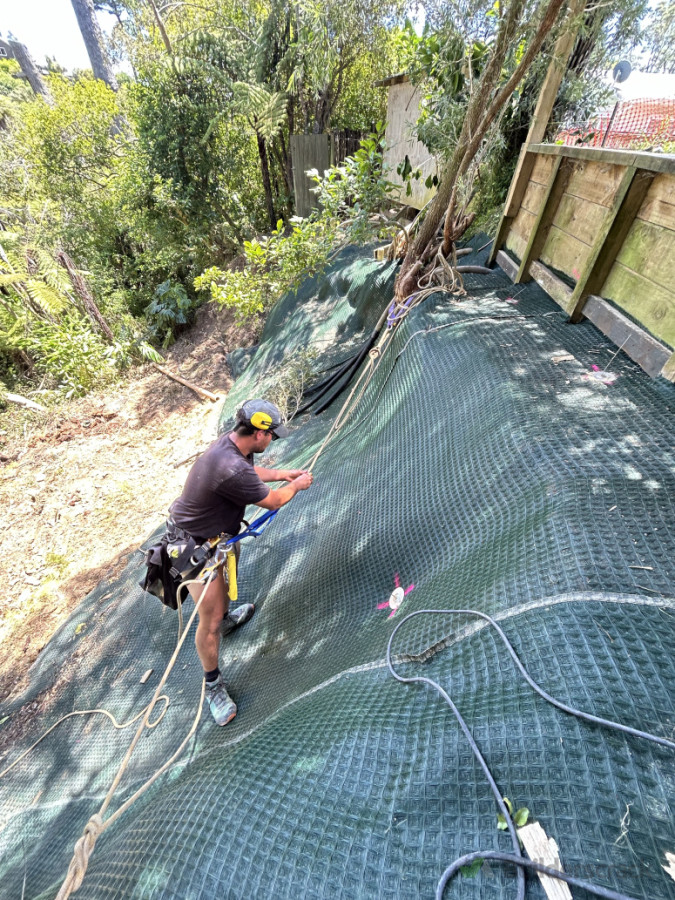

Installation of reinforced matting & driven anchors

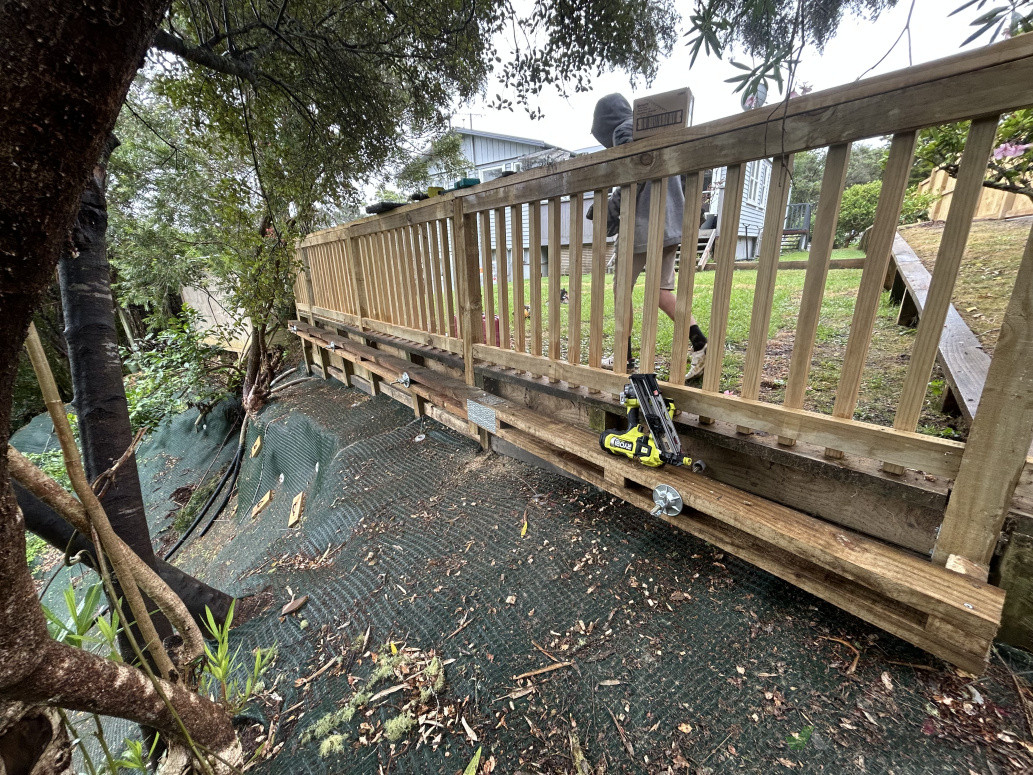

Tie back anchors w/ Timber waler

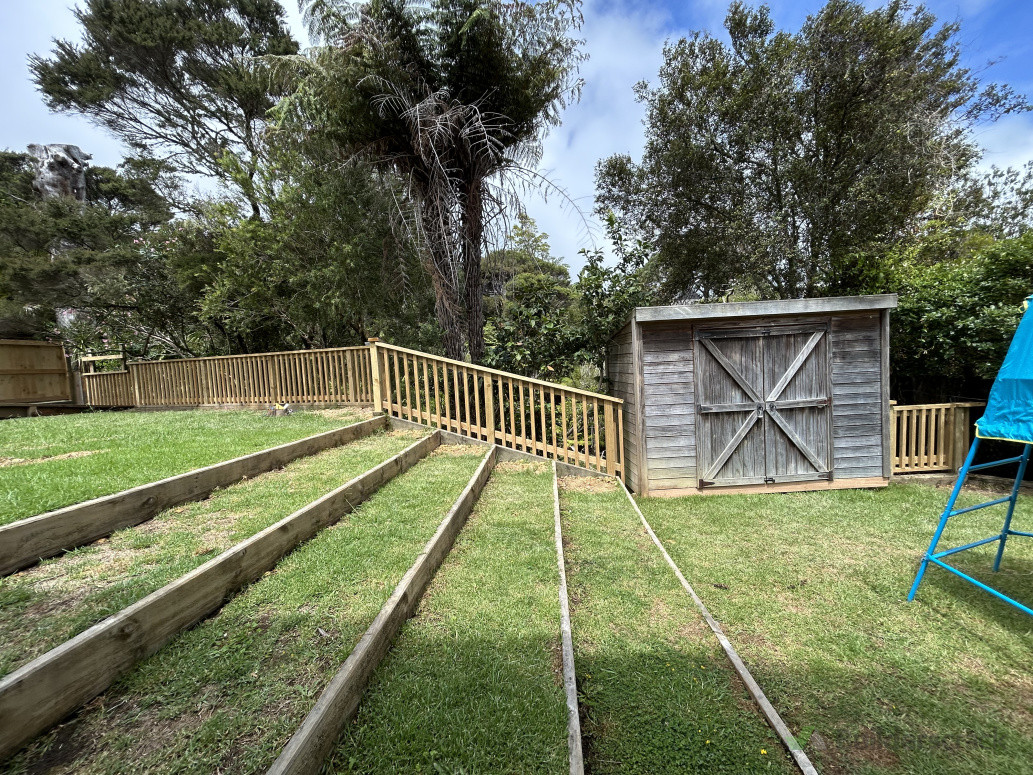

That’s not going anywhere ✅

Project description

We successfully completed a land slip stabilisation project, restoring safety and stability to a compromised embankment. The works involved removing slipped material and vegetation, followed by careful hand contouring of the slope back to competent soils. We installed Cirtex engineered matting, securely pinned in place with driven anchors, and implemented a robust tie-back system connected to deadman piles and a support beam. The system was then tightened and locked off to a timber waler using plates and nuts, creating a strong, long-lasting solution designed to prevent future movement and protect the surrounding area.

Last updated on 27-03-2026
