Project

Subdivision in drury

Project description

This project involved the installation of approximately 250 metres of 1.2 m wide × 1.2 m high aluminium PS1-rated panels to meet local council safety and compliance regulations.

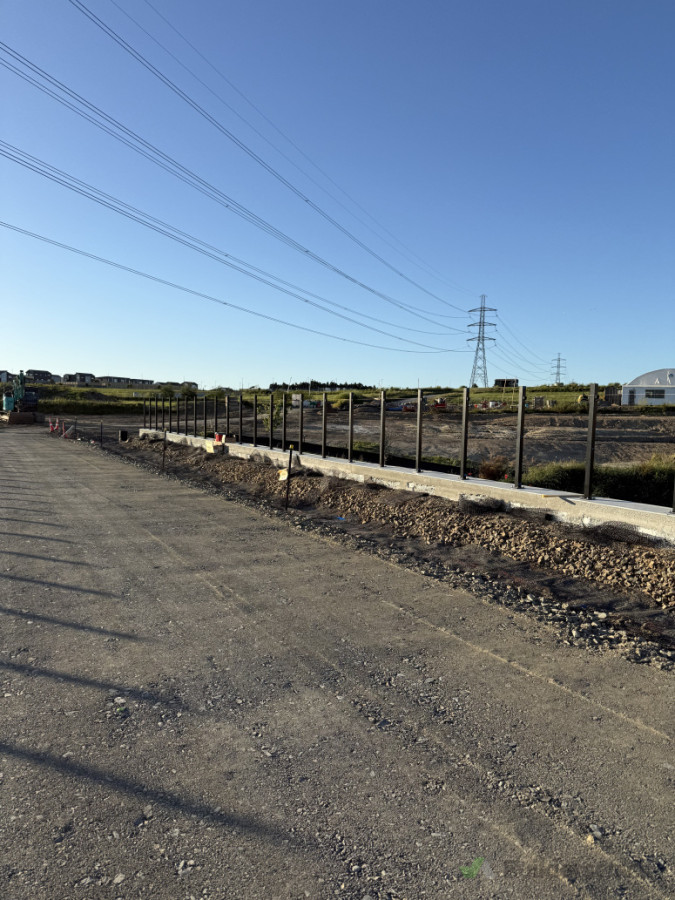

The installation was completed by core drilling into the existing concrete surface, followed by chemical anchoring (cemsetting) stainless steel threaded rod into the substrate to provide a secure and durable fixing system. Fence posts were then installed and fastened using stainless steel washers and nuts, ensuring long-term corrosion resistance and structural stability.

Once the panels were fitted, plastic caps were tapped onto each vertical section to provide a clean, tidy finish and protect the exposed edges.

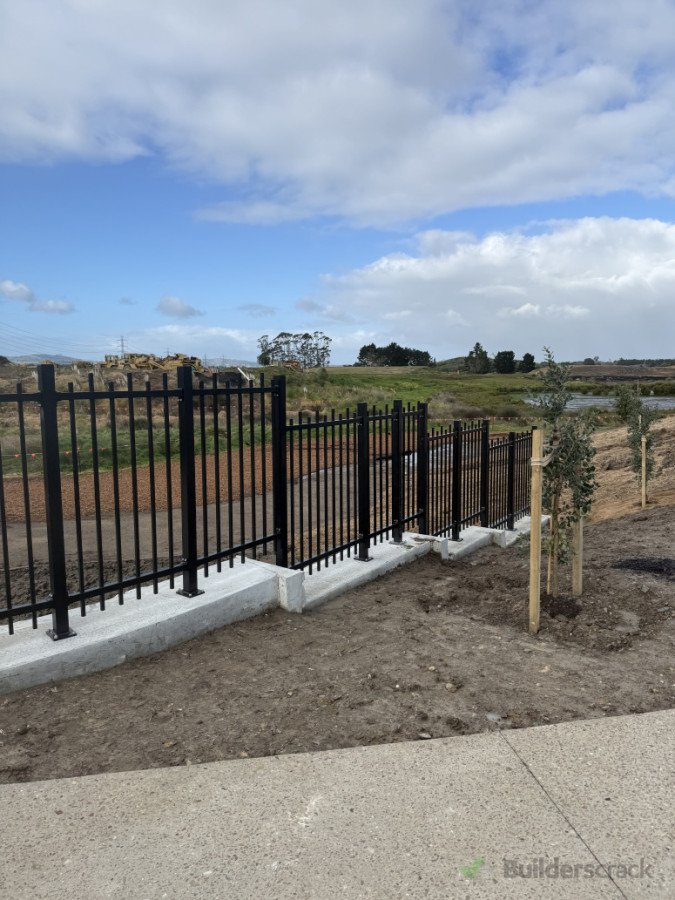

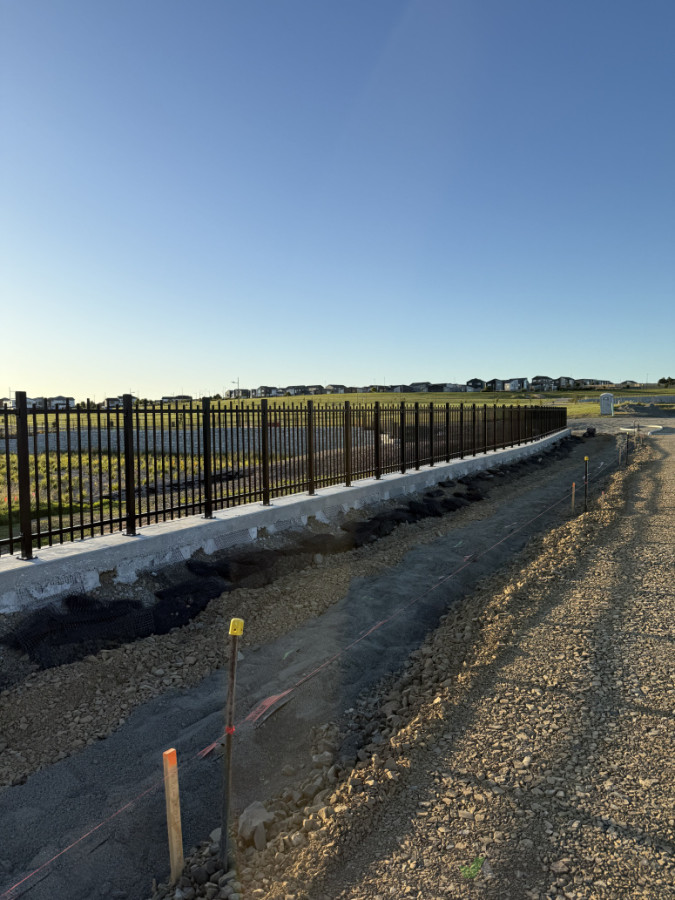

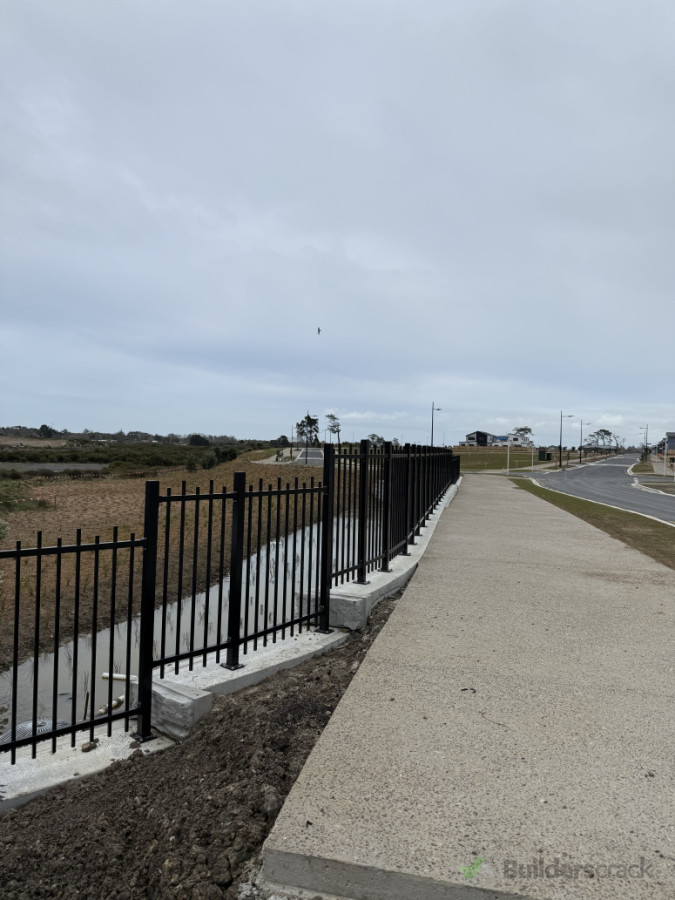

The completed installation delivers a strong, compliant, and visually neat barrier system that meets regulatory requirements while maintaining a professional finish.

Last updated on 18-03-2026
