Leaking Skylight Flashing Remediation – Flavia Close

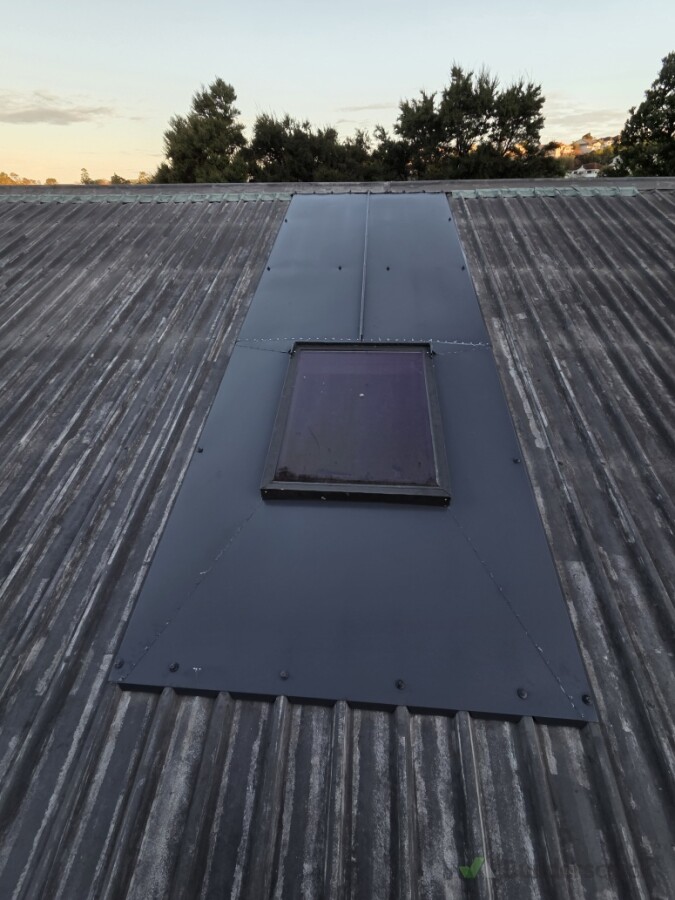

Standing seam backtray to ensure compliance with new COP requirements to minimise fasteners/rivets

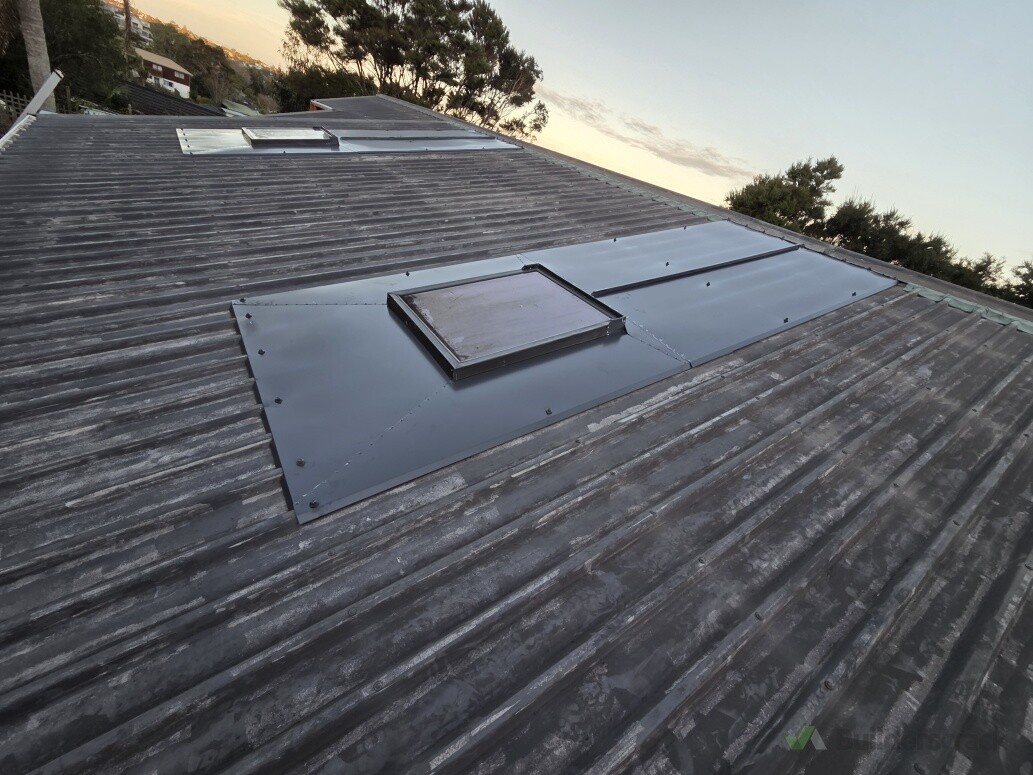

Extended flashings installed to cover all weak point. Allowing coverage into a pan/trough so if water gets pas flashing en lap it can drain to ensure zero chance of failure

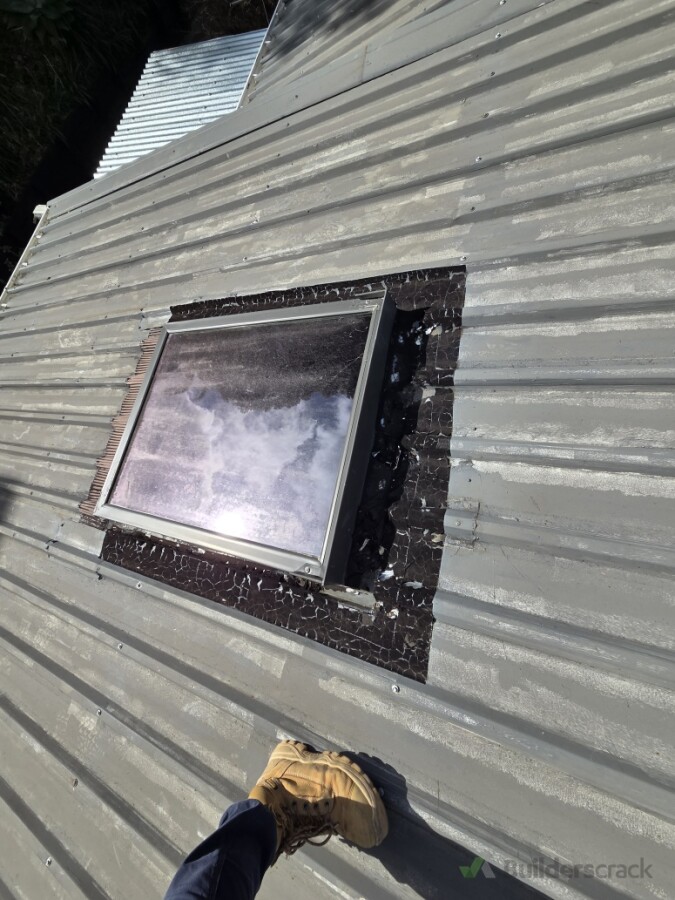

Cracked butyl tape after temporary repair

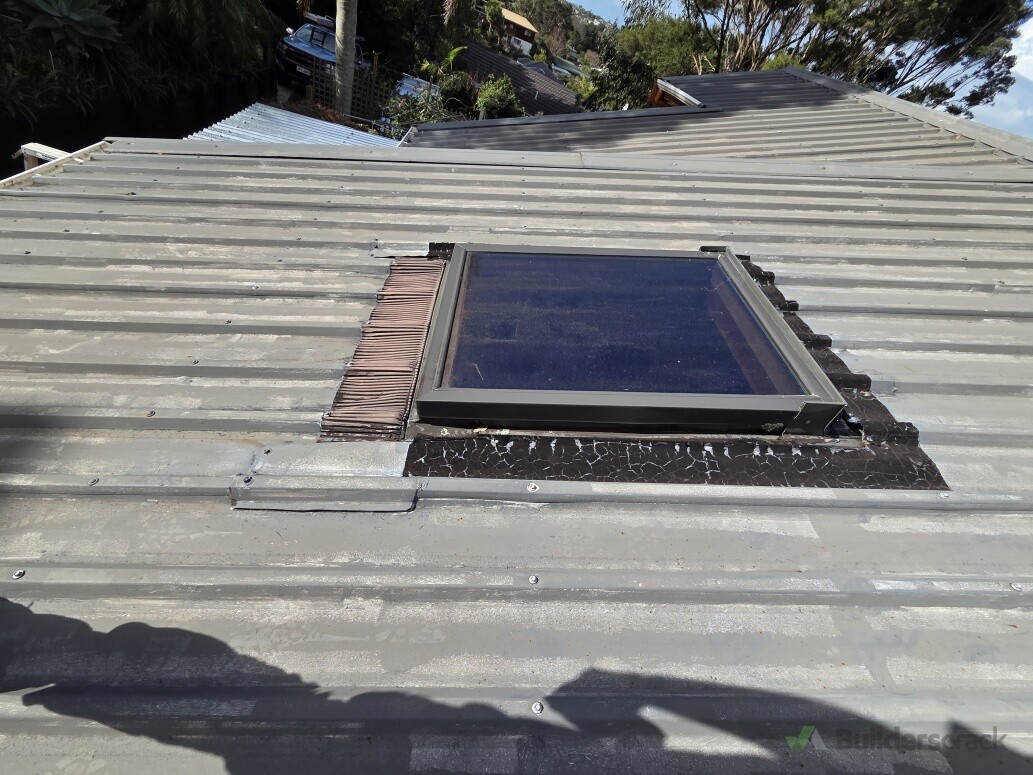

Failed sealant & non compliant flashing work due to age

Project description

This project involved investigating and rectifying persistent leaks around two recessed skylights. Our assessment identified that the existing flashing system had been incorrectly detailed, allowing water to bypass the flashings and enter the building.
We removed all debris from the affected areas and designed a new flashing system that extended beyond all critical leak points, ensuring water is safely diverted back into the roof pan before it can reach any vulnerable areas. While the new flashings may appear larger than standard, this is intentional and follows New Zealand metal roofing best practice to provide reliable long-term weatherproofing.
The completed installation delivers a durable, compliant solution that significantly reduces the risk of future water ingress and provides the client with confidence that the skylights have been flashed correctly.
